For mobile developers using Flutter, it’s crucial to create visually appealing and responsive user interfaces for your applications. However, rendering layout issues can often arise, causing glitches and errors in your UI. One of the most common reasons for such issues is improper use of constraints. Constraints are the building blocks that define the size and position of widgets on the screen in Flutter, and mastering their use is essential for creating smooth layouts.

In this blog post, we will explore the world of constraints in Flutter and provide you with some insight into how they work and how to use them effectively. We will also delve into common errors that occur due to improper use of constraints, plus give you some tips and best practices to avoid them.

Constraint rules and exceptions

In Flutter, parent widgets play a crucial role in providing size constraints and determining the position of child widgets on the screen. Child widgets set their own parameters based on the constraints provided by their parent, creating a complex interdependency of constraints in the widget tree. We will explore how parent widgets provide size constraints and influence the position of child widgets and how this impacts the overall layout rendering in Flutter.

In Flutter, constraints are used to define the size and position of widgets on the screen. They play a critical role in ensuring that widgets are rendered correctly and responsively. Constraint rules are largely shaped by the parent/child widget hierarchy system of Flutter.

Box constraints

Box constraints define the minimum and maximum height and width that a widget can occupy. These constraints are determined by the parent widget and are passed down to the child widget. For example, a parent widget may provide a minimum height constraint of 50 pixels and a maximum width constraint of 200 pixels to its child widget. The child widget will then adjust its size within these constraints.

Box behavior

Boxes in Flutter tend to generally follow three different patterns of behavior when it comes to the size they attempt to fill:

  1. Try to be as big as possible. Examples include the boxes used by Center and ListView.
  2. Try to be the same size as their children. Examples include the boxes used by Transform and Opacity.
  3. Try to be a particular size. Examples include the boxes used by Image and Text.

Alignment constraints

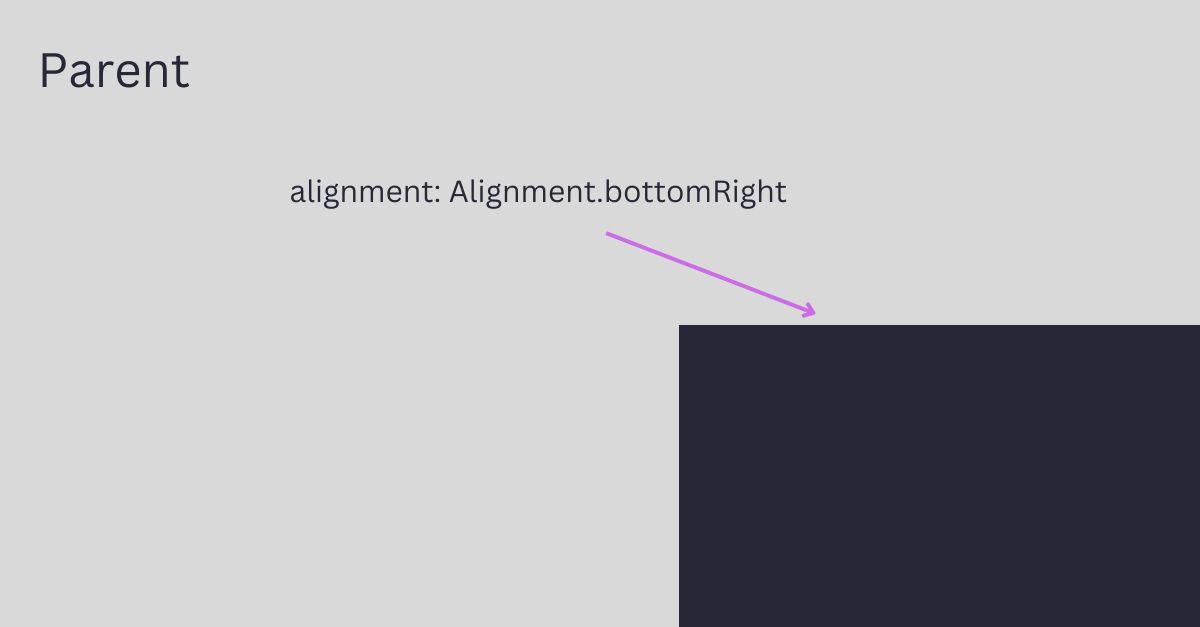

Alignment constraints determine the position of a widget within its parent widget. For example, a parent widget may align its child widget to the top-right corner, center, or bottom-left corner of its available space. Alignment constraints are used to precisely position widgets on the screen based on the desired layout.

Tight and loose constraints

Constraints in Flutter can be categorized as tight or loose. Tight constraints are ones that provide a narrow range of possible sizes for a widget, while loose constraints provide a broader range of possible sizes. Tight constraints are typically used when the parent widget has a specific size requirement for its child widget, whereas loose constraints are used when the parent widget allows its child widget to have more flexibility in size.

Unbounded constraints

In some cases, a parent widget may not provide any constraints on the size of its child widget, resulting in unbounded constraints. Unbounded constraints occur when the parent widget does not limit the size of its child widget in any way. This can potentially result in rendering issues, as the child widget may occupy more space than intended or overflow the parent widget’s boundaries.

It’s particularly important to be mindful of unbounded constraints and their potential effects on the UI.

Common constraint issues

While Flutter provides a robust and flexible system for managing constraints, improper use of these guidelines can result in common errors that impact widget rendering. Let’s take a look at some of these errors and their potential causes, as well as how they can be resolved.

“A RenderFlex overflowed” error

This error occurs when a flex widget, like a Row or Column, exceeds the constraints set by its parent widget. This can happen when the children of the flex widget occupy more space than the parent widget allows. One potential cause of this error is when the children widgets are not constrained in size and so they try to fill up as much space as their child widgets require. For example, a Column widget without constraints, and which has a Text widget as its child, will grow to be as large as the Text widget needs. If the unbounded Column is the child of, let’s say a Row Widget, you will likely get a RenderFlex overflowed error. To resolve this error, you can adjust the constraints of the parent widget, such as providing a larger width or height constraint or using a different layout widget that better suits the needs of the UI.

“RenderBox was not laid out” error

This error typically occurs when a scrollable widget, like a ListView or GridView, does not receive proper constraints from its parent widget, resulting in the scrollable widget trying to take up as much space as its own content needs. This can happen when the parent widget does not provide any constraints or the constraints are too loose. Depending on which type of scrollable widget you’re using (i.e., List or Grid), you may actually see the root of the issue is that a vertical or horizontal viewport was given unbounded height. You may also see the error  “an InputDecorator cannot have an unbounded width” at the root of the RenderBox layout issue. This happens when TextField() and TextFormField() widgets are placed within a widget whose own parent widget has given them no constraints.

To resolve these types of errors, you can ensure that the parent widget provides appropriate constraints to its child widget, either by setting tight constraints or by specifying the desired dimensions.

“Vertical viewport was given unbounded height” error

As alluded to above, this error occurs when a widget with a vertical scrolling viewport, such as a ListView or SingleChildScrollView, is not provided with a height constraint by its parent widget. This can result in the viewport trying to render an infinite height, which is not allowed in Flutter. To resolve this error, you can provide a height constraint to the parent widget or wrap the viewport with a widget that provides a height constraint, such as Expanded or SizedBox. You can also add the shrinkWrap parameter to your ListView and make it true.

Best practices for working with constraints

Understand the layout hierarchy

It’s crucial to have a clear understanding of the layout hierarchy in Flutter, where each widget’s constraints are determined by its parent widget. This includes considering both the constraints that the parent widget provides to its child widgets and the size that child widgets then pass on up to their parent. This understanding will help you design and structure your UI layout in a way that ensures proper sizing and alignment of widgets.

Proper sizing and alignment

Ensure that widgets are provided with appropriate constraints, whether tight or loose, to allow them to render properly within their parent widget. Use layout widgets, such as Expanded, Flexible, or Positioned, effectively to achieve the desired sizing and alignment of widgets. Consider using the Align and FractionallySizedBox widgets to achieve precise alignment of widgets within their parent widget.

Debugging and troubleshooting

When dealing with constraints-related errors, it’s important to effectively debug and troubleshoot the issues. Use the debugPaintSizeEnabled and debugPaintBaselinesEnabled flags to enable visual debugging of layout constraints, which can help you identify any overflow or misalignment issues. Use the debugDumpRenderTree() and debugDumpLayerTree() methods to print the current render tree and layer tree, respectively, for further inspection. Additionally, use the Flutter DevTools and Inspector to analyze the constraints and layout of widgets during runtime.

Test with different devices and orientations

Test your UI layout with different devices and orientations to ensure that your app renders correctly across various screen sizes and orientations. Use the MediaQuery widget to obtain the device’s screen size and orientation information and adjust your layout accordingly. Additionally, consider using the LayoutBuilder widget to dynamically adapt your UI layout based on the available constraints. This is especially important when thinking about how your Flutter app’s layout will look on Android devices due to how many different devices and screen sizes are out there.

Follow Material Design guidelines

If you are designing a Material Design-themed app, it’s important to follow the Material Design guidelines for sizing and alignment of widgets. This includes using the recommended layout widgets, such as Card, ListTile, and Container, and adhering to the spacing and alignment guidelines outlined in the Material Design documentation. This will ensure a consistent and visually appealing UI layout that aligns with the Material Design principles.

Key takeaways

Understanding and working with constraints in Flutter is essential for ensuring proper layout rendering in your mobile applications. By following the constraint rules, considering tight and loose constraints, and being mindful of potential errors, you can create visually appealing and responsive UI layouts that adapt to different screen sizes and orientations.
